High
Speed Wheel Alignment- Portable - Simple to
Operate - Extremely Universal - Highly Accurate
and Repeatable. Ten times more accurate then any
wheel alignment specs.
D
o
you do front end repairs and send your
alignments to another shop?
Then add up your out of pocket cost to them, the
labor to send the cars there and labor to pick
the cars up. Result...... your losing money.
Do you own and Race Cars?
Do you own your own alignment machine and
want get more business for it?
Do you own a Fast-lube?
Do you own mobile auto repair service?
Would you like to get some of that truck
business?
Would you like to increase your revenue?
High School Educator ?
The Laser Toe
and Pro Smart
Camber was
recently
accepted as
wheel alignment
requirement for
NATEF
certification.
For people in
education with
tight budgets
this sytem is a
perfect
alternative to
the high priced
wheel alignment
systems like
John Bean and
Hunter. We have
sold many
systems to
Training
Centers, high
schools,
colleges and
universities.
Description:
Advanced
Racing Technologies race proven portable Laser Toe Angle
Gauge , now sold in over 50 countries, has been used by
garages, major car manufacturers, tire manufactures,
truck garages, heavy equipmet garages not to mention
being rated #1 in motorsports. Most recent sale went to
the US Government and also United Nations for use in
Afghanistan.
One of our customers, a major car company, preformed
toe angle testing of this gauge compared to the Hunter
alignment system. They found it to be more accurate and
more repeatable. John Bean and Bear wheel alignment will
most likely fall into this category also. They and
several other car companies now use our Laser Toe for
daily inspections of new cars.

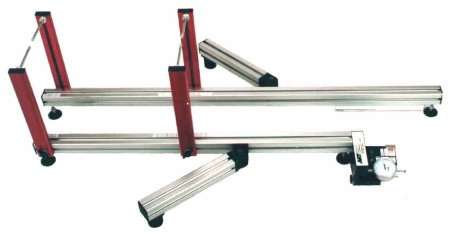

The Laser Toe was designed specifically for
solving the problem of measuring toe angles rapidly and
with a high degree of accuracy. This laser gauge has the
ability to measure (TOTAL) toe angle on front or rear
suspension of ANY vehicle including automobiles, trucks,
tractor-trailers and heavy equipment. It can be used in
the shop, or even in a parking lot. After a simple
calibration one person, in less than two minutes, can
perform the procedure of taking a toe angle measurement.
This makes it a very useful diagnostic tool for tire
shops, body shops, garages, fast lube shops, and field
service companies.
Toe angle measurements can be performed with
accuracies of 1/60 of a degree or 4 thousands of an
inch. Testing was done by one of our customers, a major
car company, and proved that the Laser Toe II was more
repeatable and more accurate than a well known full size
alignment system. They now use it to do daily
inspections.
The battery powered laser head incorporates the
latest in solid state laser diode technology providing
excellent laser beam uniformity. For the new millennium
this gauge is now five times brighter. This fully
portable laser system is made mostly of fully anodized
aluminum, weighs less than twenty pounds and breaks down
to fit in the optional, handmade, precision instrument
case - not much larger than a rifle case. It comes with
all hardware, instructions, and angle to fraction
conversion charts.
Specifications:
R
esolution
- 1/60 of a degree / .004" on a 15" Wheel
Dial Indicator Read Out
Measurements in less than two minutes
Level surface not required
Wheels from 5" - 28" Custom wheel sizes to 60" 1500mm
Battery powered
How To
Operate:
T
he
operation of the Laser Toe II wheel alignment is simple.
It can take less than two minutes to get a toe reading.
Place the laser section and mirror section, with its
locating pins, against the front wheels. With the laser
shooting under the vehicle, you simply make two
adjustments to align the laser beam reflection from the
mirror to a scribe line on the face of the laser. With
this accomplished you read the dial indicator for your
wheel alignment toe reading.
Combine the Laser Toe Gauge with the Pro Smart
camber and you're in the two wheel alignment business
for a fraction of the cost of a full scale alignment
system.
U
sed
by BMW and Ford to calibrate automated wheel alignment
system and used at their test track.
Some of the current automotive users: BMW, Ford,
Firestone Tire, John Deere Tractor, MEA Training Center,
high schools, colleges and universities.
